LHS Series of Oil/Gas-fired Multifunctional Boilers

Name: LHS Series of Oil/Gas-fired Multifunctional Boilers
Rating: 5.0 (65 reviews)

Structural Features

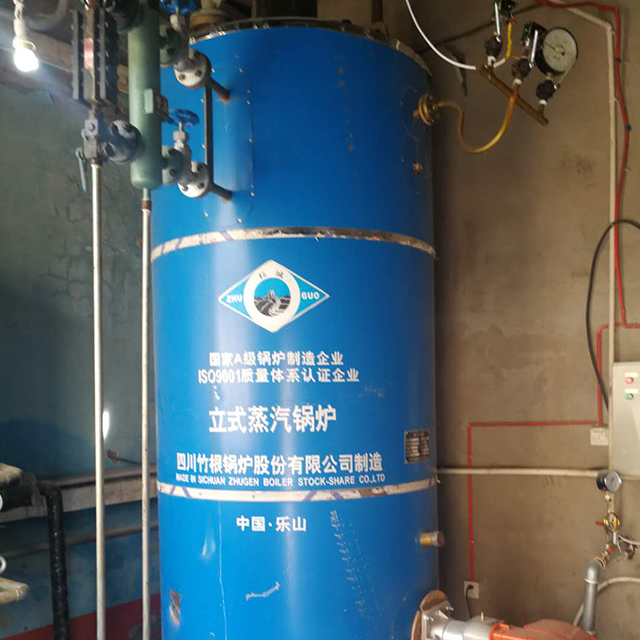

The LHS series of oil/gas-fired multifunctional boilers are vertical-type fire-tube boilers, which are mainly composed of a shell, a furnace and fire tubes, etc.
The heating surfaces are reasonably arranged, and novel stainless-steel flue-gas-blocking pieces are arranged within the fire tubes, greatly improving the heat efficiency of the boiler.
The vertical arrangement reduces the space occupation, and the advanced structural design ensures a higher output.
This series is equipped with a globally-famous brand burner and top-ranking accessories, realizing an advanced control and a higher reliability.
Fully-automatic control system is adopted, achieving an easier operation.

Applications

This series is mainly used for fields including pharmacy, food, daily chemicals, tobacco, wine-making, colleges, hotels and public facilities.

Boiler Models	Rated Evaporating Capacity	Rated Steam Pressure	Rated Steam Temperature	Feed-water Temperature	Hot-water Yield	Boiler Heat Efficiency	Fuel Consumption		Max. Transportation Weight	Max. Transportation Overall Dimensions
	Rated Evaporating Capacity	Rated Steam Pressure	Rated Steam Temperature	Feed-water Temperature	Hot-water Yield	Boiler Heat Efficiency	轻柴油 Light Diesel	天然气 Natural Gas	Max. Transportation Weight	Max. Transportation Overall Dimensions
	t/h	MPa	℃	℃	t/h	%	Kg/h	Nm³/h	Ton	mm
LHS0.05-0.04-YQ	0.05	0.04	109	20	0.35	88	~3.5	~4.1	~0.15	Φ600×1400
LHS0.08-0.04-YQ	0.08	0.04	109	20	0.5	88	~5.5	~6.7	~0.2	Φ700×1650
LHS0.1-0.04-YQ	0.1	0.04	109	20	0.7	88	~6.9	~8.4	~0.24	Φ700×1650
LHS0.15-0.04-YQ	0.15	0.04	109	20	1	88	~10.5	~12.6	~0.35	Φ750×1900
LHS0.2-0.04-YQ	0.2	0.04	109	20	1.5	88	~13.8	~16.8	~0.45	Φ850×1950
LHS0.3-0.04-YQ	0.3	0.04	109	20	2	92.2	~19.8	~24.1	~0.5	Φ920×1920
LHS0.5-0.04-YQ	0.5	0.04	109	20	3	93	~33	~39.8	~1.02	Φ1100×2500
LHS1-0.04-YQ	1	0.04	109	20	6	90	~68.8	~82.9	~3.1	Φ1500×3450
LHS0.1-0.09-YQ	0.1	0.09	118	20	0.75	89	~7	~8.3	~0.4	Φ670×1720
LHS0.15-0.09- YQ	0.15	0.09	118	20	1	89	~11	~13.2	~0.4	Φ750×1930
LHS0.2-0.09- YQ	0.2	0.09	118	20	1.5	89	~14	~16.6	~0.5	Φ840×1940
LHS0.3-0.09- YQ	0.3	0.09	118	20	2	89	~22	~26	~0.6	Φ880×1930
LHS0.5-0.09- YQ	0.5	0.09	118	20	3	89	~32	~34.7	~1.19	Φ1190×2460
LHS1-0.09- YQ	1	0.09	118	20	6	90	~68.8	~82.9	~3.1	Φ1500×3450
